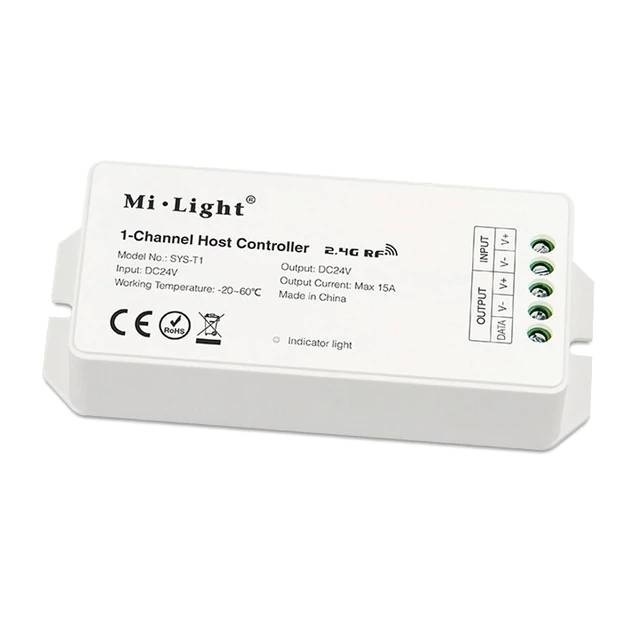

MiboxerSYS-T1 Host Controller for 24V SYS Lamps

Miboxer SYS

Do you want safe lighting in your garden or pool that works on 24V, and would you like to control it in all RGB colors + warm or cool white? Then Miboxer SYS is ideal for your situation. Miboxer developed SYS to enable control of various 24V lighting sources with multiple channels (e.g., RGB+CCT) via a 3-core ground cable.

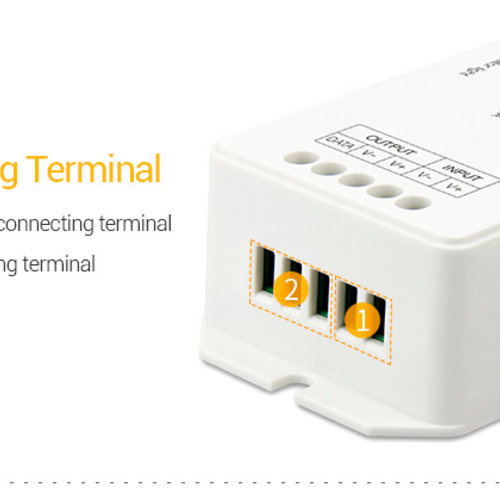

The controller only requires 3 outputs: +24V, GND, and data. The controller is operated using the standard 2.4 GHz RF remote controls from Miboxer.

Controlling 24V RGBCCT outdoor lighting

To control 5-channel (RGBCCT) outdoor lighting such as ground spots (SYS RD-1 or SYS-RD-2) or pool spots, you need this controller. The maximum power the controller can handle is 360W (15A), and the controller works on 24 volts. Therefore, you also need a 24V power adapter with enough capacity for all lighting.

To operate this controller, you need a Miboxer remote, such as the FUT092.

All lighting must be connected in parallel to the controller. So, run a 3-core ground cable and make necessary splits using cable connectors or junction boxes. You can only control different lighting sources separately if you use multiple controllers and run a separate cable to each controller.
