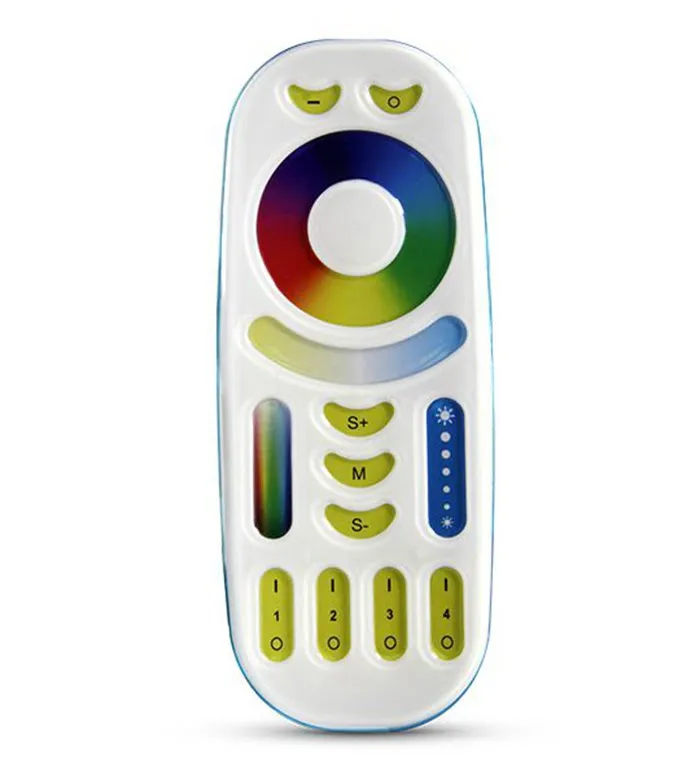

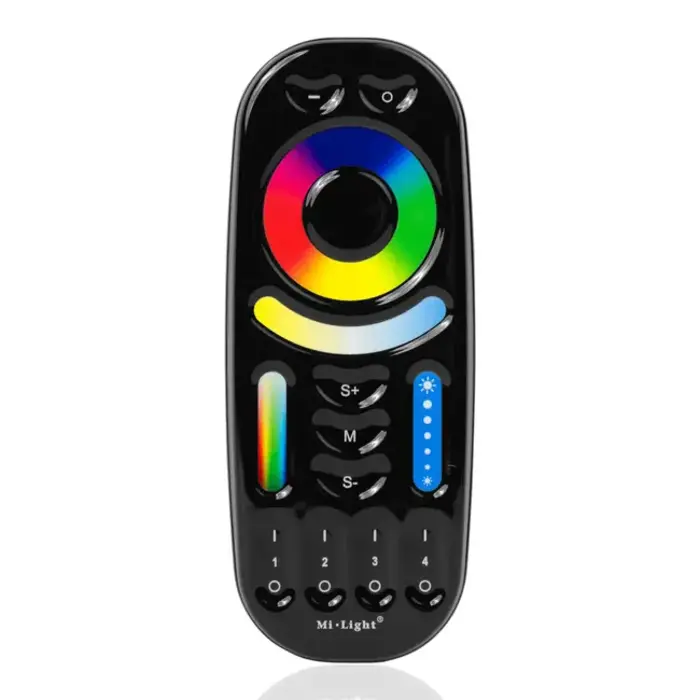

MiboxerRGBCCT LED 4 zone remote with color wheel FUT092
4 Zone RGBCCT Remote Control from Milight. Suitable for various RGBCCT Milight products such as controllers or light sources.
With this remote control, you can easily set your lighting to exactly the right setting. Very easy, reliable, and intuitive to use. Features: Choose from 4 zones. Once a zone is selected: choose color using the color wheel, dim, auto color change, on/off. The remote control can set the LED strip to an RGB color or to warm white.
When you order this item, you will only receive the separate remote control.
You still need to pair the remote control with the light source or controller. Here’s how:
Beforehand: Check remote control batteries / insert batteries.
Pairing Milight FUT092 Controller with a lamp or controller:
- Disconnect power from the controller (wait a moment to ensure the controller really has no power, as the adapter may contain residual power)
- Reconnect power to the controller
- Press the Zone ON button (see manual) of the desired zone on the remote within 3 seconds (!) For example, to pair with zone 1, in that case, this button is the vertical line above "1" in the lower left of the remote.
- If successful, the LED strip will blink 3 times. The LED strip can now be controlled by the remote in the selected zone.
- If unsuccessful, try again from step 1. Sometimes it may take several attempts before it works.
Specifications:
Manufacturer: Milight
Model: FUT092
Batteries: 2x AAA
Suitable for number of channels: 5 (R,G,B,W, WW)
Remote type: RF (2.4GHz)
*Controller can be placed out of sight
Remote control range: 40 meters max.
Remote dimensions: 56x26x113mm
