LED Strip RGB Flexible - 30 LEDs/m - per 50cm
Flexible LED Stripsold per 50cm. The LED Strip is delivered in one piece up to 5 meters. Example: If you put 3x 50cm of LED strip in your shopping cart, you will receive one 1.5 meter LED Strip. However, if you put 16x 50cm of LED Strip in your shopping cart, it is delivered as 1x5m and 1x3m. Etc.
You can solder multiple lengths together to create one long LED Strip.

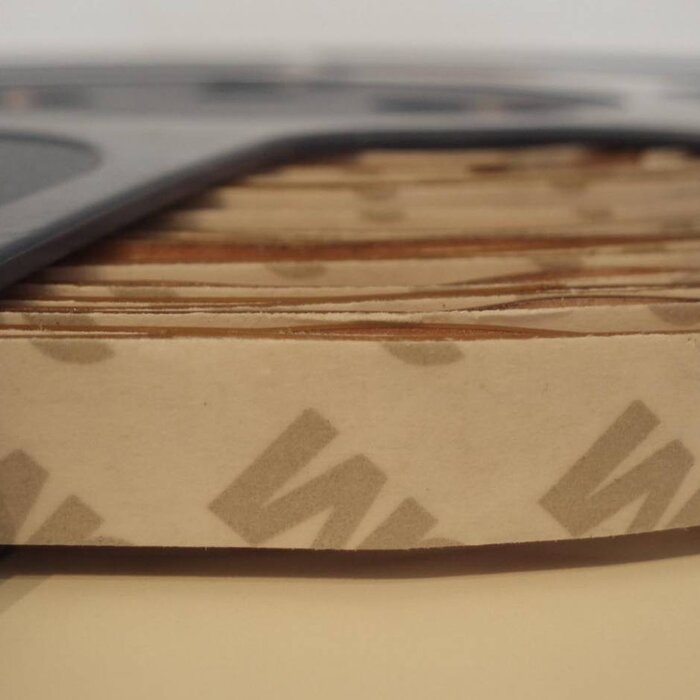

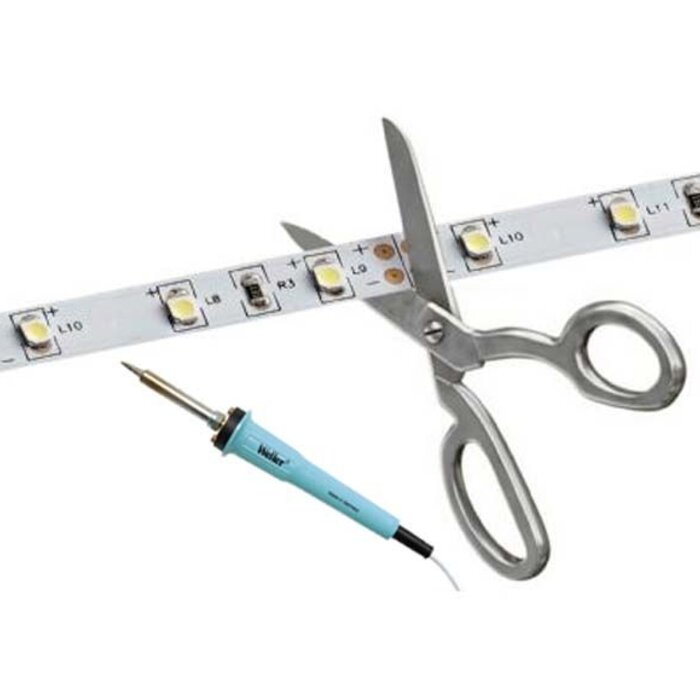

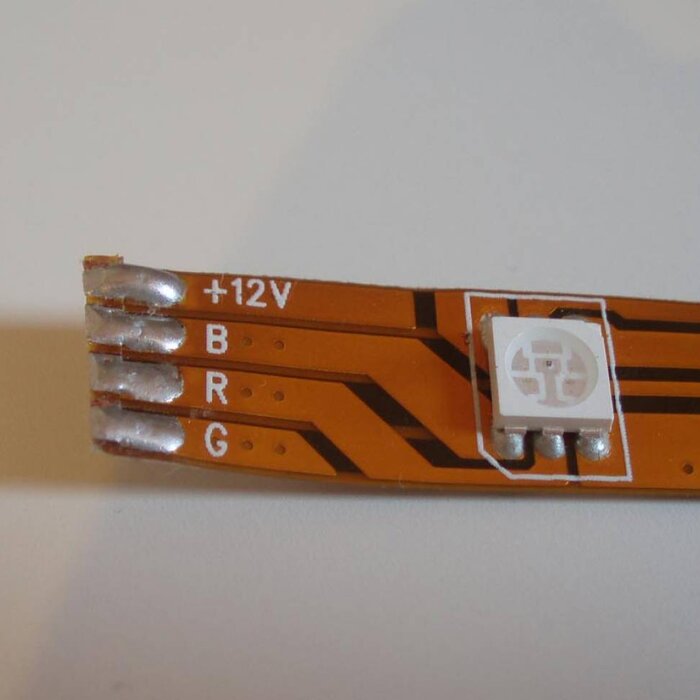

Flexible RGB LED-strip with adhesive for easy mounting. This strip is very easy to install. You can cut the strip every 5 cm to create any size you need. Moreover, this LED-strip is extremely flexible and very narrow corners can be made with it. The power is supplied through the soldering points which can be found on the strip every 5 centimeters.
Applications: Stylish architectural lighting. Illumination of your stairs, kitchen, living room, restaurant, etc. A versatile product which allows you to create stunning lighting effects in a heartbeat!
The strip contains 30 RGB LEDs Per Meter.
This LED Strip requires the use of an RGB Controller. It works on 12 Volts, so to connect it to a 110-230V power outlet you will also need a power supply. Please see the category Accessories - Power Supplies for this. The more LED strip you want to connect, the higher the power consumption will be and therefore the bigger the power supply must be. Look below for an indication of which power supply to use with this LED strip:
10cm - 1.5 meters: Power Supply 12 Watt
1.5 meters - 5 meters: Power Supply 36 Watt
5 meters - 8 meters: Power Supply 60 Watt
8 meters - 11.5 meters: Power Supply 84 Watt
11.5 meters - 16.5 meters: Power Supply 120 Watt
16.5 meters - 25 meters: Power supply 200 Watt
25 meters - 50 meters: Power Supply 400 Watt
More than 50 meters: Use multiple power supplies in combination with an amplifier or contact us for advice and price.
Note: Connecting one single length of more than 14 meters is not possible, due to loss of current inside the LED strip. For lengths longer than 14 meters, the strip should be split up and powered separately. Also please pay attention to the maximum current of your RGB Controller. Usually this is around 144 Watts. To connect more than 144 Watts of LED Strip to it, you will need to use RGB Amplifiers. Please do not hesitate to contact us for advice!

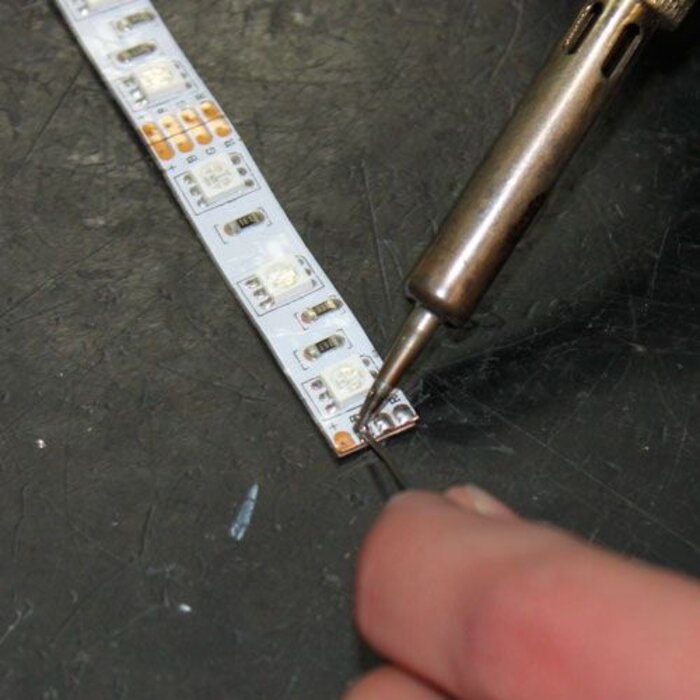

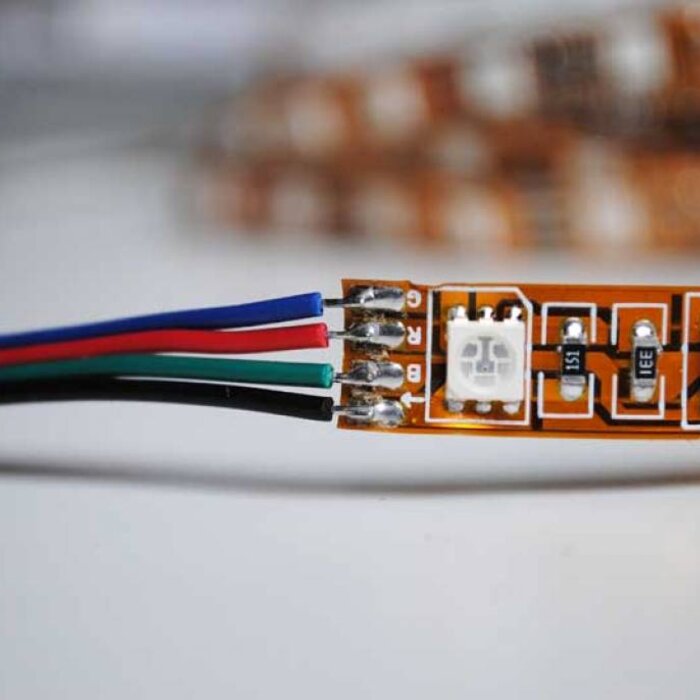

Remark: Delivered with a cable to connect to the RGB Controller. This connector needs to be soldered onto the LED strip. If you do not know how to solder: no problem, we can do this for you. Add "soldering service for flexible LED Strips" to your shopping cart and we will do all the necessary soldering for you. Look under Accessories -> Service or scroll to the bottom of this page.
For more information on how to connect LED Strips, please see our manual.
This product is in stock in large quantities. If you are searching for LED strips with specific requirements, please contact [email protected] for info and prices. We can supply custom LED Strips of almost any type.
Details:
Luminous flux: Max. 500 lumen per meter.
LED Color: RGB
Voltage: 12V
Amperage: 0.6 A / meter
Power: 7.2 W / meter
Can be cut every 3 LEDs.
Strip width: 10mm (0.39 inches)
Strip height: 2mm (0.08 inches)
