LED Strip Extra Warm White - 120 LED/m - per 50cm
Flexible LED Stripsold per 50cm. The LED Strip is delivered in one piece up to 5 meters. Example: If you put 3x 50cm of LED strip in your shopping cart, you will receive one 1.5 meter LED Strip. However, if you put 16x 50cm of LED Strip in your shopping cart, it is delivered as 1x5m and 1x3m. Etc.
You can solder multiple lengths together to create one long LED Strip.
Choose your voltage (optional): We can supply this LED strip in 12 Volts (standard) or 24 Volts. See "voltage" above.

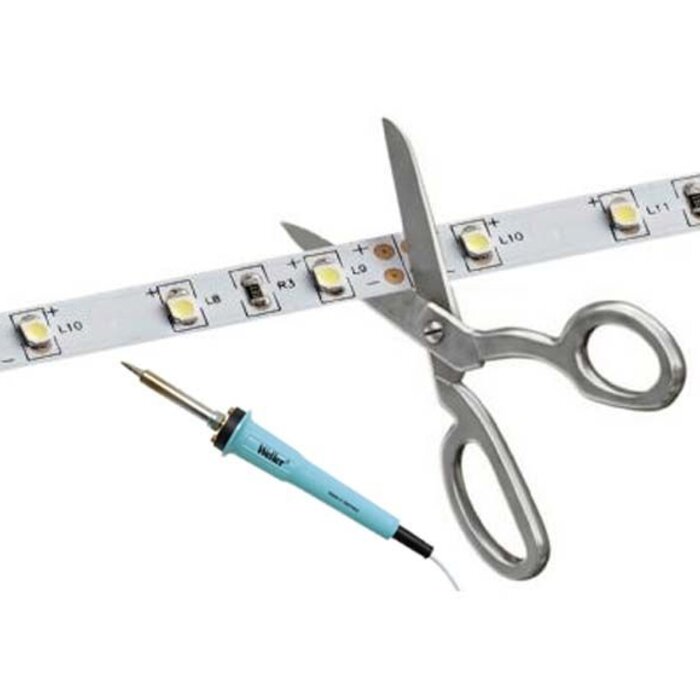

Flexible LED-strip with adhesive for easy mounting. This strip is very easy to install. You can cut the strip every 3 LEDs (12V) / 6 LEDs (24V) to create any size you need. Moreover, this LED-strip is extremely flexible and very narrow corners can be made with it. The power is supplied through the soldering points which can be found on the strip every 2.5 centimeters (12V) / 5.0 centimeters (24V).

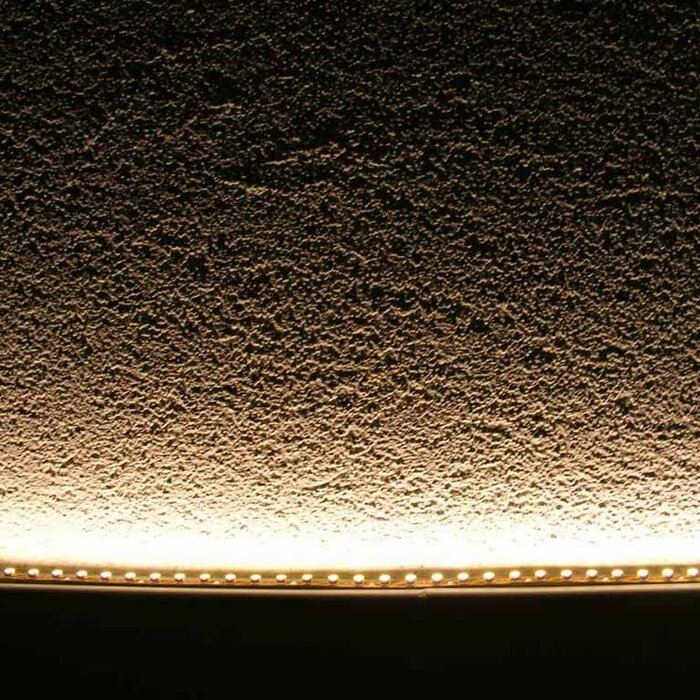

Applications: Stylish architectural lighting. Illumination of your stairs, kitchen, living room, restaurant, etc. A versatile product which allows you to create stunning lighting effects in a heartbeat!
This LED Strip works on 12 / 24 Volts, so to connect it to a 110-230V power outlet you will need a power supply. Please see the category Accessories -> Power Supplies for this. The more LED strip you want to connect, the higher the power consumption will be and therefore the bigger the power supply must be. Look below for an indication of which power supply to use with this LED strip:
5cm - 1.25 meters: Power Supply 12 Watt
1.25 meters - 3.75 meters: Power Supply 36 Watt
3.75 meters - 6.25 meters: Power Supply 60 Watt
6.25 meters - 8.75 meters: Power Supply 84 Watt
8.75 meters - 12.5 meters: Power Supply 120 Watts
12.5 meters - 20 meters: Power supply 200 Watt
20 meters - 40 meters: Power supply 400 Watt
More than 40 meters: Use multiple power supplies or contact us for advice and price.
This LED Strip can be dimmed in combination with an LED Dimmer.

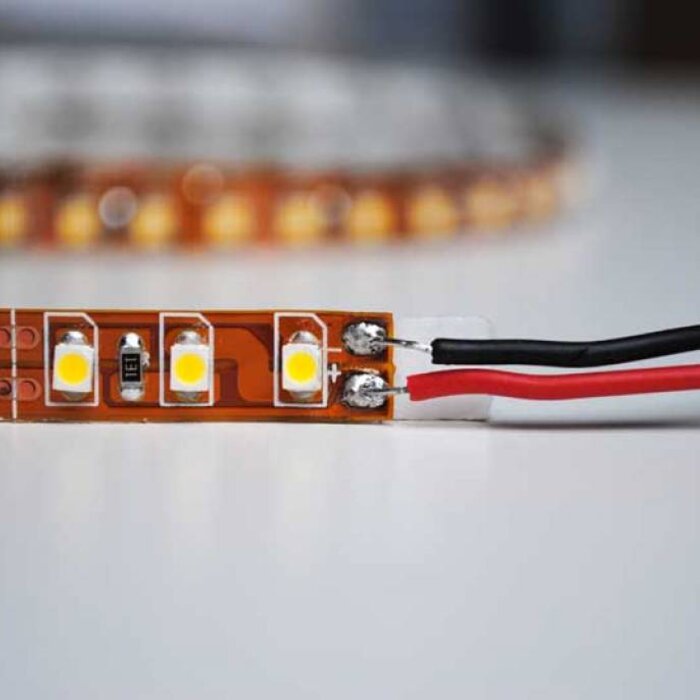

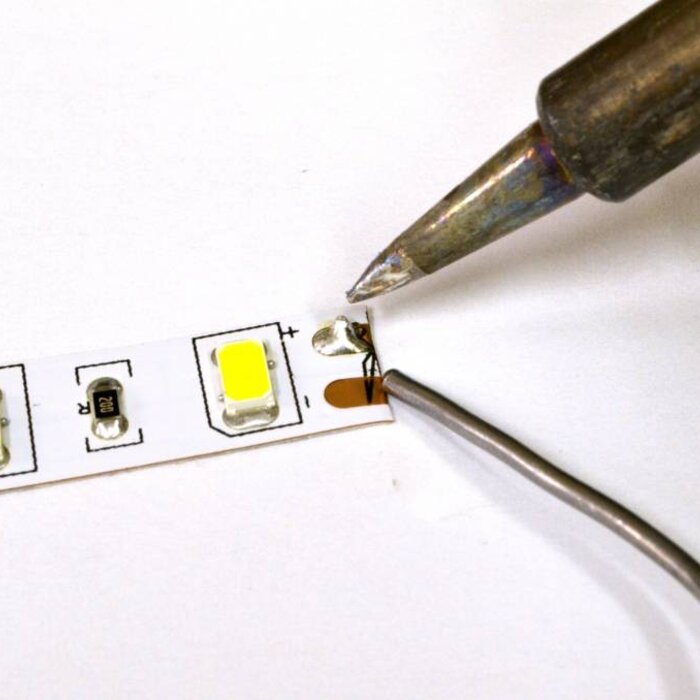

Remark: Delivered with a connector which can be plugged into the power supply. This connector needs to be soldered onto the LED strip. If you do not know how to solder: no problem, we can do this for you. Add "soldering service for flexible LED Strips" to your shopping cart and we will do all the necessary soldering for you. Look under "Service & Accessories" or scroll to the bottom of this page.
For more information on how to connect LED Strips, please see our manual.
This product is in stock in large quantities. If you are searching for LED strips with specific requirements, please contact [email protected] for info and prices. We can supply custom LED Strips of almost any type.
Stock:
This article is in stock.
- Article number: 000037-extraww.06.04
- Waterproof: No (IP20)
- Length: per 50cm
- Color: 2400-2700K Extra Warm White
- Luminous flux: 800lm / m
- Beam angle: 120°
- Voltage: 12V / 24V DC
- Current per meter: 0.8A (12V) / 1.6A (24V)
- Power per meter: 9.6W
- Cut unit: 2.5cm (12V) / 5cm (24V)
- Width: 8mm
- Height: 2mm
- LEDs per meter: 120
- LED Type: 3528
- LED Brand: Epistar
- Can be cut to size: Yes

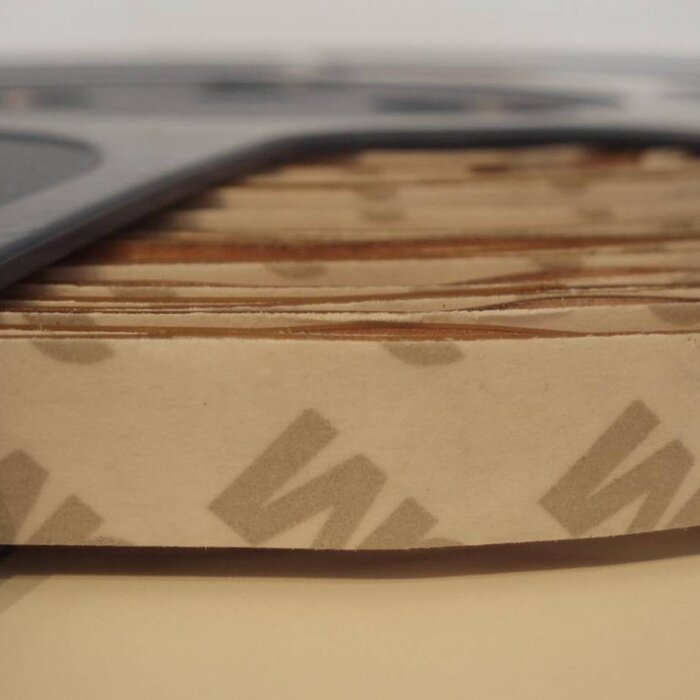

- Equipped with adhesive strip: Yes
