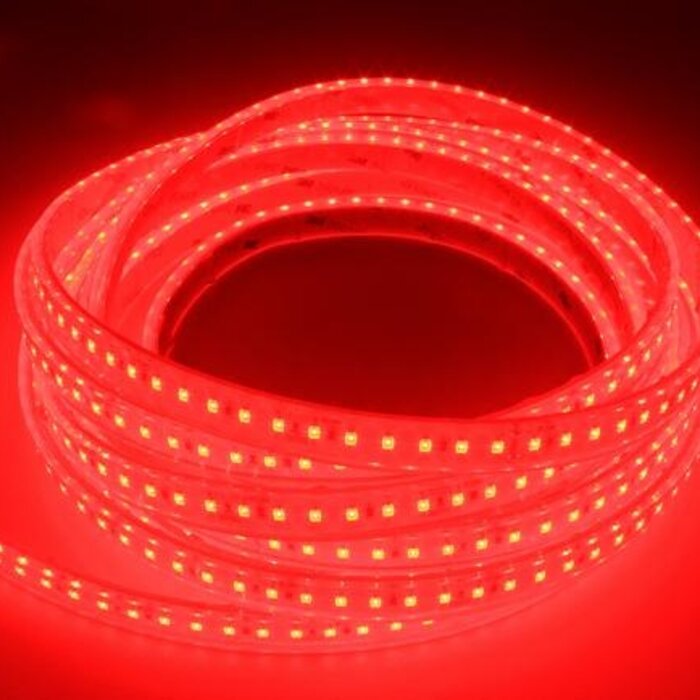

LED Strip Red 120 LED/m Waterproof - per 50cm

This LED Strip is fully waterproof (IP68), and can be used both indoors and outdoors.

Flexible LED Stripsold per 50cm. The LED Strip is delivered in one piece up to 5 meters. Example: If you put 3x 50cm of LED strip in your shopping cart, you will receive one 1.5 meter LED Strip. However, if you put 16x 50cm of LED Strip in your shopping cart, it is delivered as 1x5m and 1x3m. Etc.
You can solder multiple lengths together to create one long LED Strip.

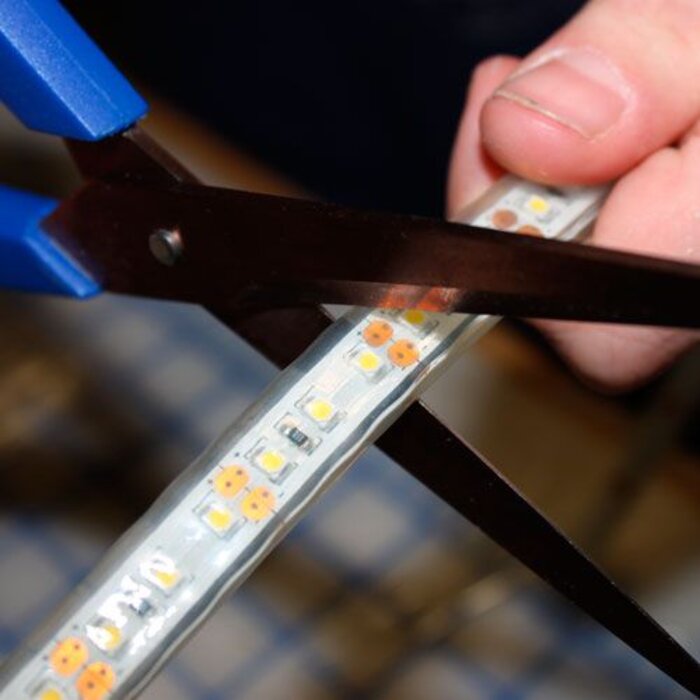

This LED Strip is very easy to install. You can cut the strip every 5 cm to create any size you need. Moreover, this LED-strip is extremely flexible and very narrow corners can be made with it. The power is supplied through the soldering points which can be found on the strip every 5 centimeters. The LED Strip is mounted using flexible mounting clips (supplied).

Applications: Stylish architectural lighting. Illumination of your stairs, kitchen, living room, restaurant, etc. A versatile product which allows you to create stunning lighting effects in a heartbeat!

This LED Strip works on 24 Volts, so to connect it to a 110-230V power outlet you will need a power supply. Please see the category Accessories -> Power Supplies for this. The more LED strip you want to connect, the higher the power consumption will be and therefore the bigger the power supply must be. Look below for an indication of which power supply to use with this LED strip:

5cm - 1.25 meters: Power Supply 12 Watt
1.25 meters - 3.75 meters: Power Supply 36 Watt
3.75 meters - 6.25 meters: Power Supply 60 Watt
6.25 meters - 8.75 meters: Power Supply 84 Watt
8.75 meters - 12.5 meters: Power Supply 120 Watts
12.5 meters - 20 meters: Power supply 200 Watt
20 meters - 40 meters: Power supply 400 Watt
More than 40 meters: Use multiple power supplies or contact us for advice and price.

This LED Strip can be dimmed in combination with an LED Dimmer.

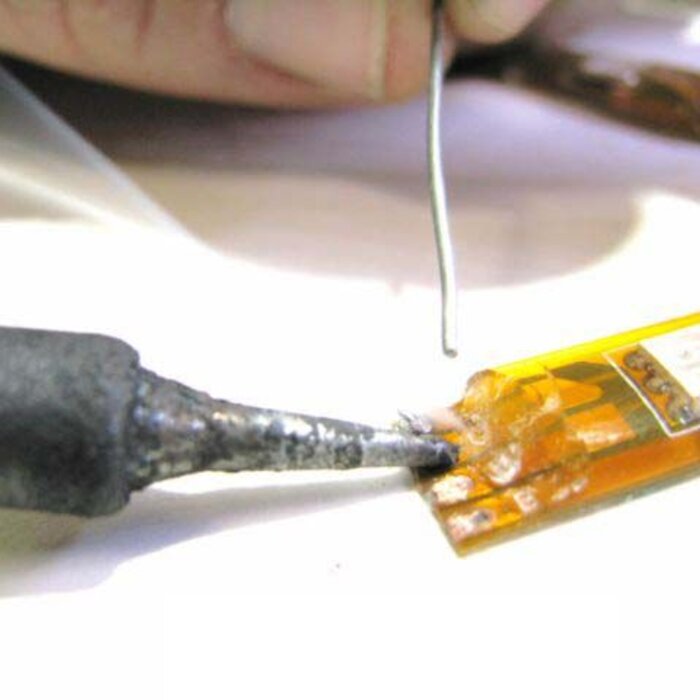

Remark: This LED strip is delivered on waterproof rolls of 5 meters with connection wire on each end. If you want to shorten the LED strip, or if you order a shorter length, you will need to solder new wires onto the LED strip and make the cut section waterproof again. For this purpose, the LED strip comes with end-caps. You can use glue, two component resin or putty to secure these end caps to the strip and make everything waterproof again. You can also order silicone glue from our website.

For more information on how to connect LED Strips, please see our manual.

This product is in stock in large quantities. If you are searching for LED strips with specific requirements, please contact [email protected] for info and prices. We can supply custom LED Strips of almost any type.

Details:
Color: Red 630nm
Waterproof: Yes (IP68)
Luminous flux: 280lm per meter
Voltage: 24V
Number of LEDs per meter: 120
LED Type: SMD 3528
Amperage: 0.4 A / meter
Power: 9,6 W / meter
Can be cut every 6 LEDs.
Strip width: 11mm
Strip height: 5mm
