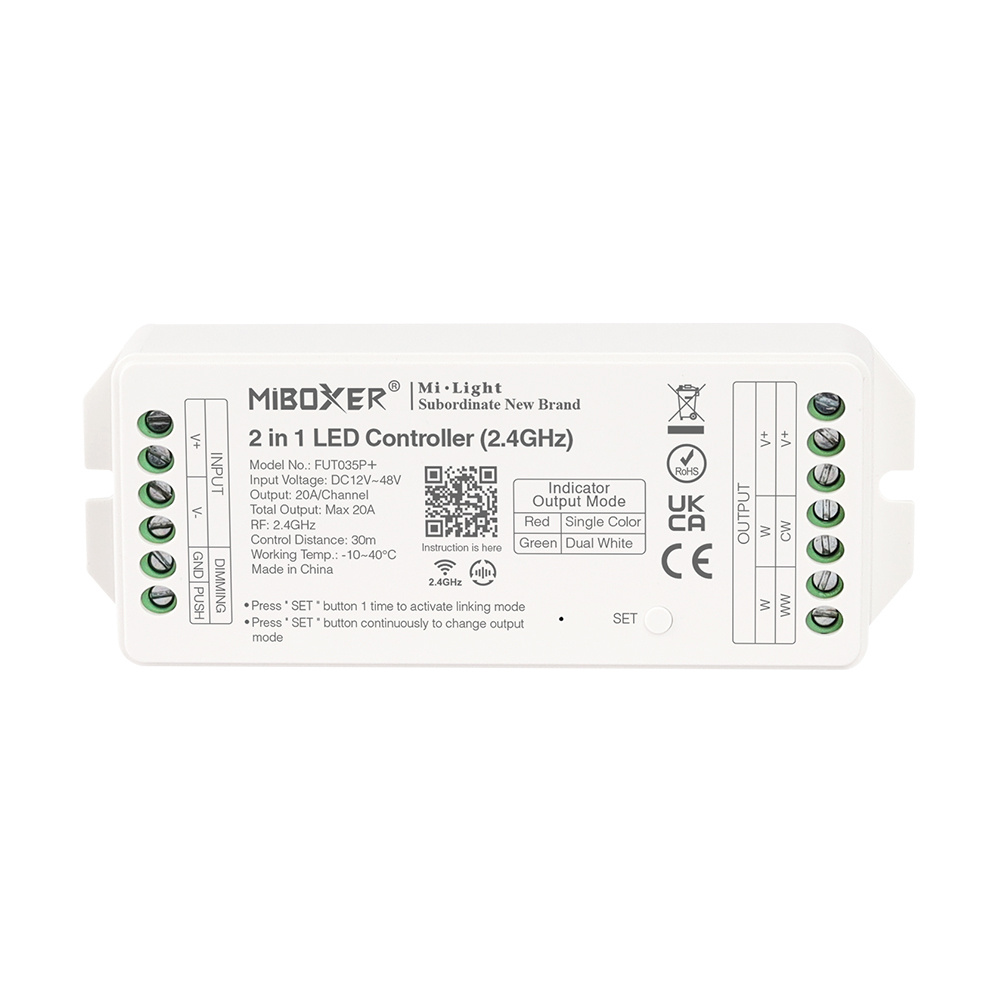

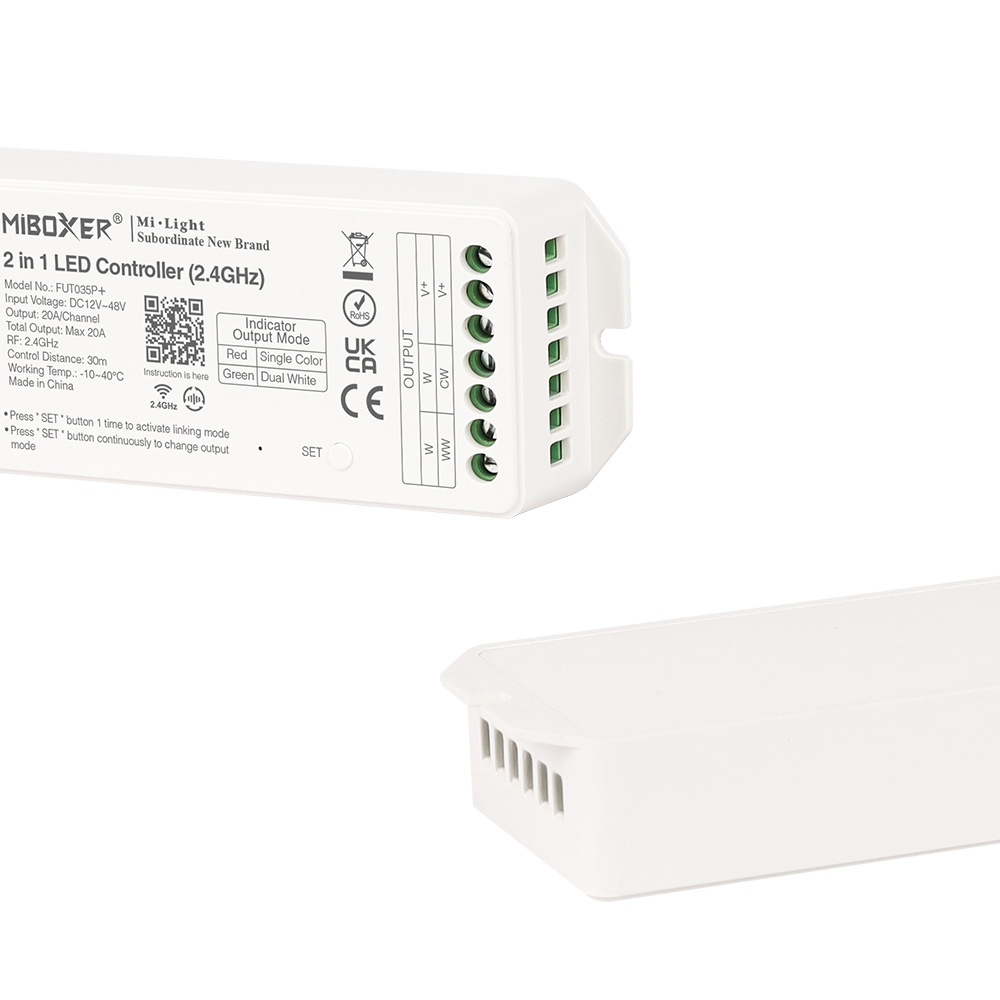

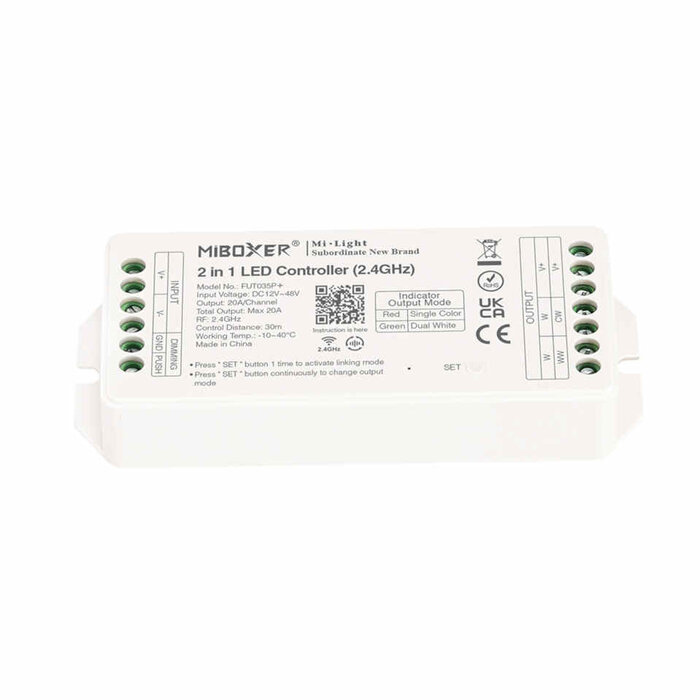

Miboxer2.4Ghz RF LED Controller - 2 in 1 - Single Color + CCT - Max. 20A - FUT035P+
- Easy to use
- Multifunctional, suitable for both single-color and dual white
- Versatile, compatible with many 2.4 GHz Miboxer remotes
- High power of up to 20A, suitable for up to 480W of LED strip
- No direct smart home / Zigbee connectivity (only with Miboxer 2.4Ghz gateway)
Versatile 2-in-1 Controller for LED Strips
This is a convenient multifunctional controller from Miboxer that allows you to control both single-color (1-channel) and dual white (CCT / 2-channel) LED strips. You can easily operate this controller using a Miboxer 2.4 GHz remote control. With it, you can dim the LED strip and, in the case of a dual white LED strip, adjust the color temperature. The RF signal range of the remote control reaches up to 30 meters, and you don’t need to point it at the controller as the signal goes through walls and doors. This controller is the high-power version of the FUT035S+, with a total capacity of up to 20A. Use this controller if you want to connect a large quantity of LED strips.
Possible Smart Home Integration
If you combine the controller with the Miboxer 2.4 GHz gateway, you can also control it with your smart home system, such as Alexa or Google Assistant.
Selection Guide
Don't know which controller and remote you need? Go to this page, and scroll down for a selection guide.
- Brand: Miboxer
- Article number: FUT035P+
- Length: 119 mm
- Width: 47 mm
- Height: 23 mm
- IP Rating: IP20
- Waterproof: No
- Housing material: White ABS plastic
- Input voltage: 12V / 48V DC
- Output voltage: 12V / 48V DC
- Number of channels: 2
- Maximum current per channel:: 20A
- Maximum total current: 20A
- Maximum total power at 12V: 240 Watt
- Maximum total power at 24V: 480 Watt
- Suitable for: CCT / Single-Color LED Strip
- Protocol: 2.4 GHz
- Reception range: 30 meters
- Operating temperature: -10~40℃
- Warranty: 5 years
- Zigbee 3.0: No
