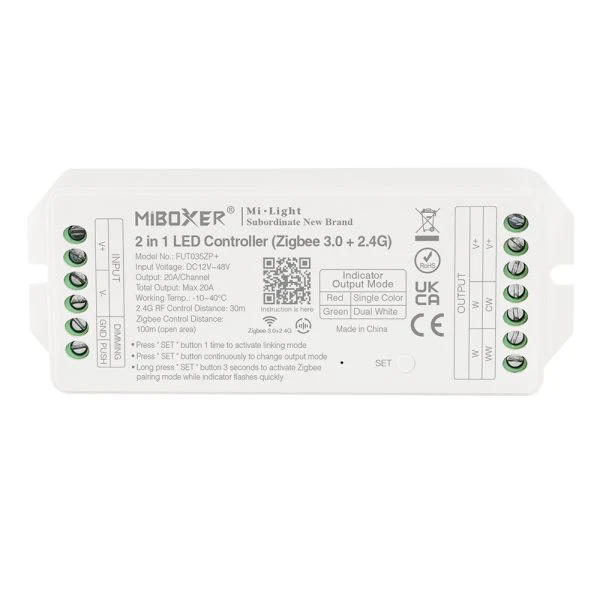

Miboxer2.4Ghz RF & Zigbee LED Controller - 2 in 1 - Single Color + CCT - Max. 20A - FUT035ZP+
- Easy to use
- Multifunctional, suitable for both single-color and dual white
- Versatile, compatible with many 2.4 GHz Miboxer remotes and all smart home systems.
- High power of up to 20A, suitable for up to 480W of LED strip
2-in-1 Controller compatible with both remote control and Zigbee
This is a versatile multifunctional controller from Miboxer that can control both single-color (1-channel) and dual white (CCT / 2-channel) LED strips.
This controller is compatible with a Smart Home system. You can easily connect this Zigbee controller to your smart lighting, such as Philips Hue, Amazon Alexa, or Ikea Home Smart / TRÅDFRI.
Additionally, it can also be controlled using a regular Miboxer 2.4Ghz RF remote control.
You can dim the LED strip and, in the case of a dual white LED strip, adjust the color temperature. The range of the RF signal from the remote control is up to 30 meters, and it does not need to be pointed directly at the controller, as the signal passes through walls and doors. This controller is the high-power version of the FUT035Z+, with a total power capacity of up to 20A. Use this controller if you want to connect a large number of LED strips.
Don't know which controller and remote you need? Go to this page and scroll down for a Miboxer product selection guide.
- Brand: Miboxer
- Article number: FUT035ZP+
- Length: 119 mm
- Width: 47 mm
- Height: 23 mm
- IP Rating: IP20
- Waterproof: No
- Housing material: White ABS plastic
- Input voltage: 12V / 48V DC
- Output voltage: 12V / 48V DC
- Number of channels: 2
- Maximum current per channel:: 20A
- Maximum total current: 20A
- Maximum total power at 12V: 240 Watt
- Maximum total power at 24V: 480 Watt
- Suitable for: CCT / Single-Color LED Strip
- Protocol: 2.4 GHz / Zigbee 3.0
- Reception range: 30 meters
- Operating temperature: -10~40℃
- Warranty: 5 years
- Zigbee 3.0: No
